1970 Triumph T120 Bonneville

Progress photos sent to the client during restoration

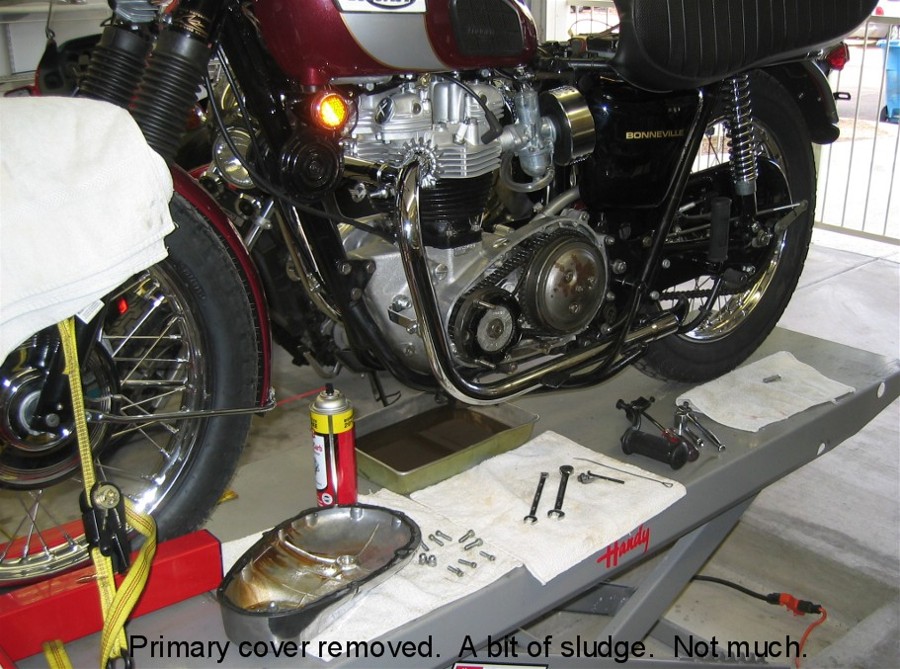

1970 Triumph T120 — primary chaincase disassembled for inspection and rebuild — Primary chaincase — disassembled

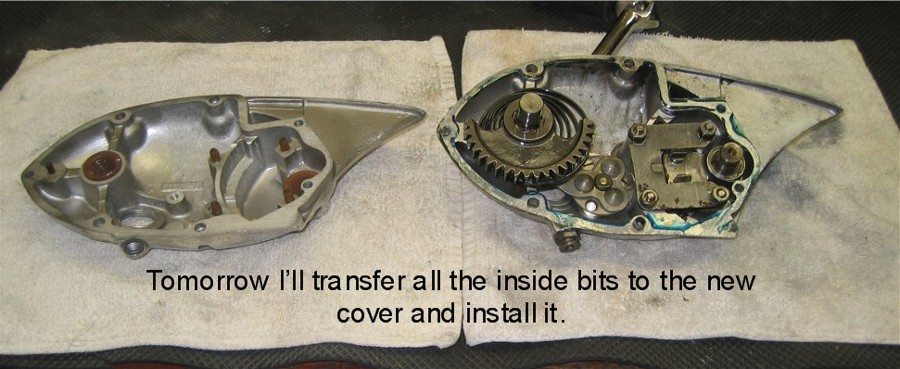

1970 Triumph T120 — gearbox internals laid out during transmission rebuild — Gearbox internals — transmission rebuild

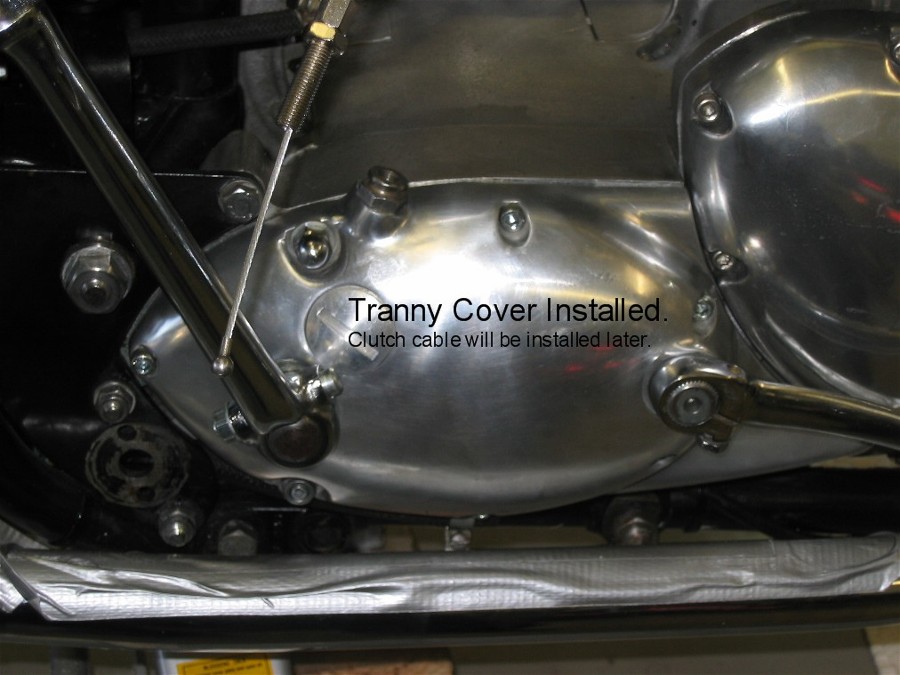

1970 Triumph T120 — transmission cover removed showing inner workings — Transmission cover installed

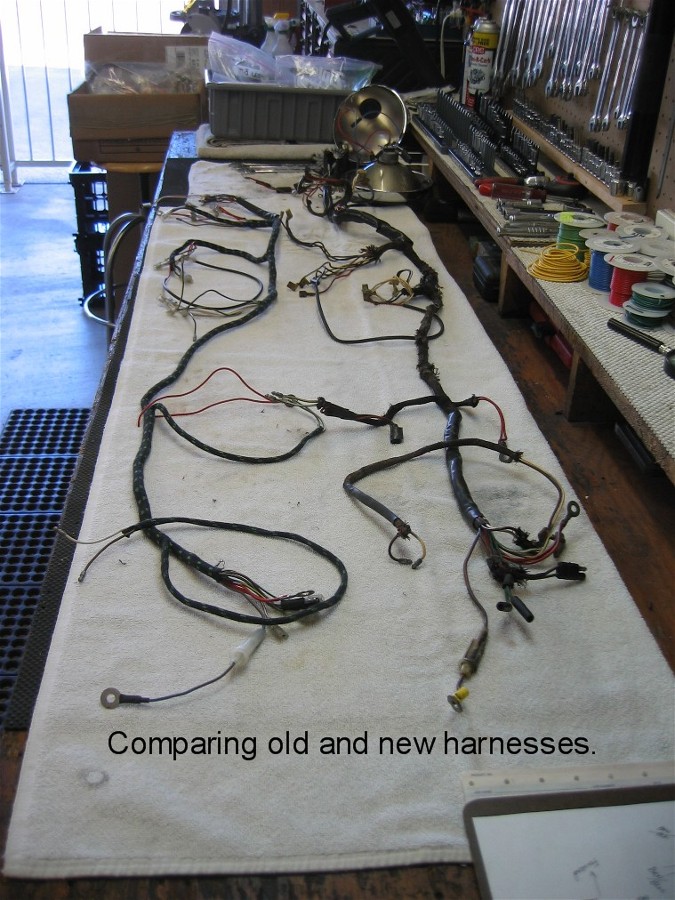

1970 Triumph T120 — old and new parts comparison during restoration — Old vs. new parts comparison

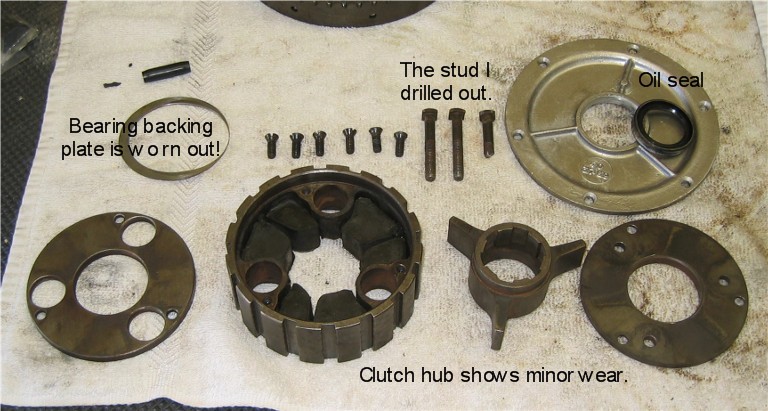

1970 Triumph T120 — clutch hub assembly during rebuild — Clutch hub assembly

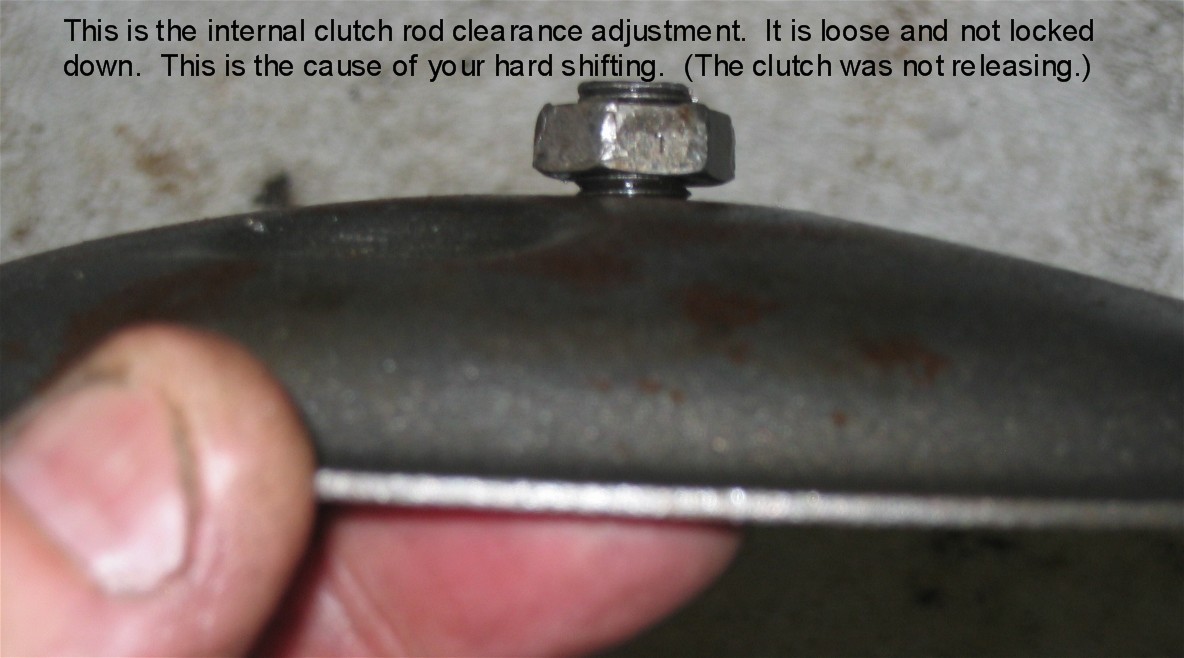

1970 Triumph T120 — clutch rod adjustment being set — Clutch rod adjustment

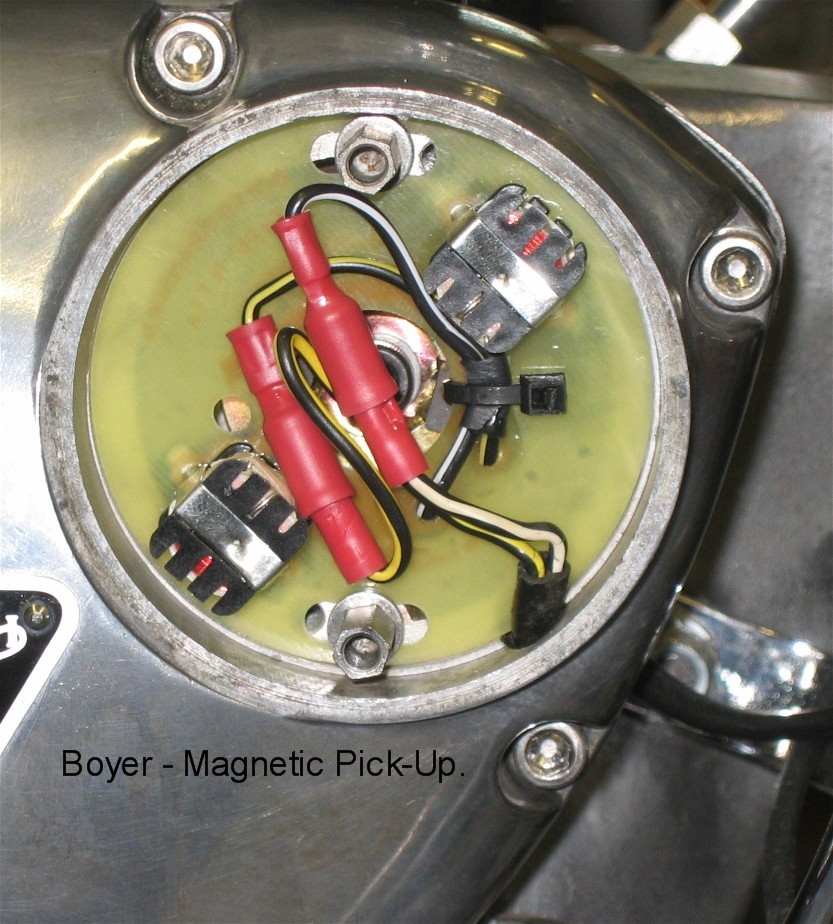

1970 Triumph T120 — Boyer electronic ignition installation, step 1 — Boyer ignition installation — step 1

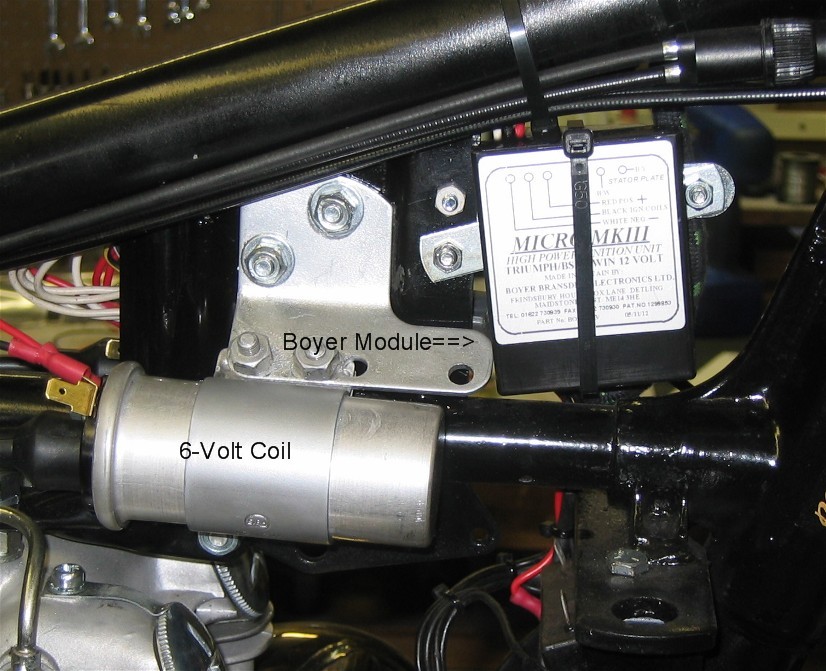

1970 Triumph T120 — Boyer electronic ignition installation, step 2 — Boyer ignition installation — step 2

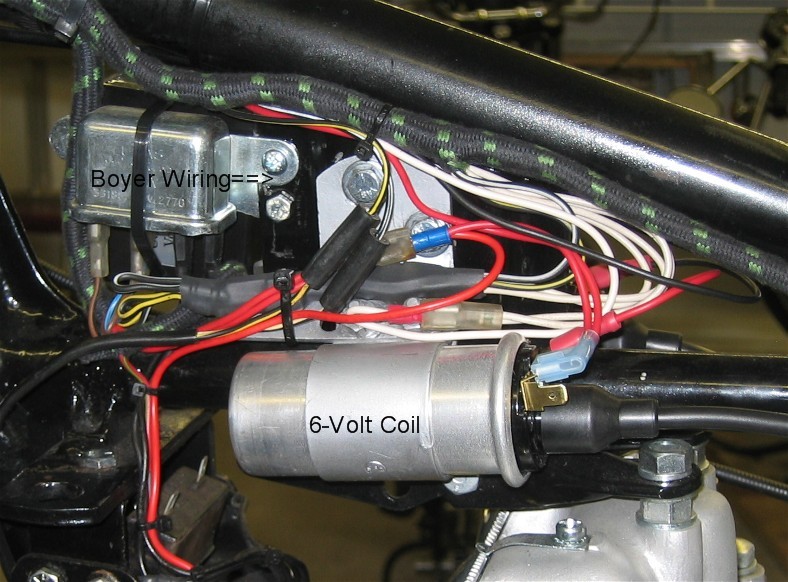

1970 Triumph T120 — Boyer electronic ignition installation, step 3 — Boyer ignition installation — step 3

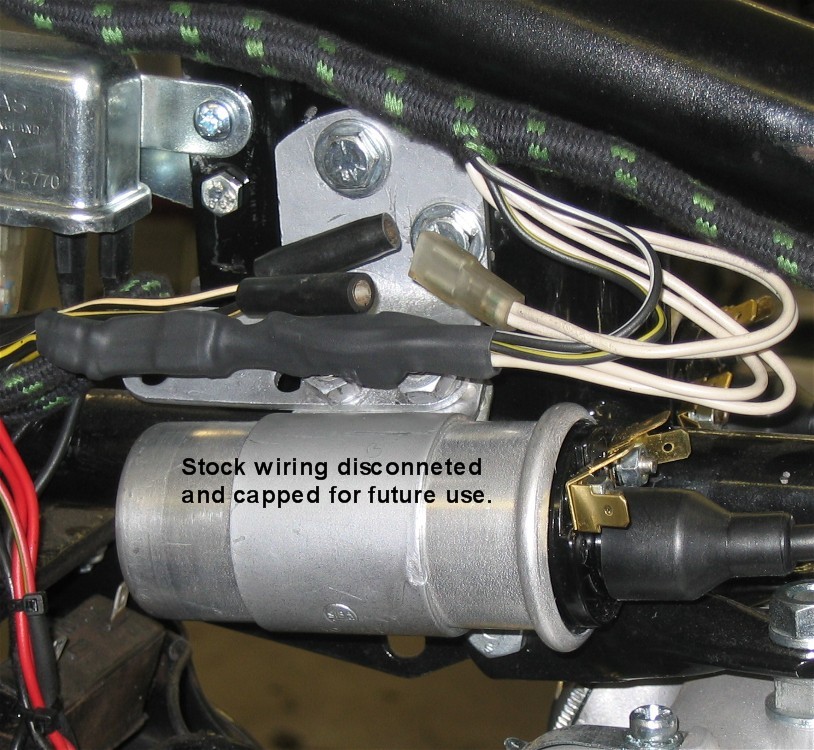

1970 Triumph T120 — Boyer electronic ignition installation, step 4 — Boyer ignition installation — step 4

About These Photos

These were progress photos emailed to the client so he could see what was going on during the restoration. Work included primary and gearbox rebuilds, clutch hub and rod adjustment, and installation of a Boyer electronic ignition system.
